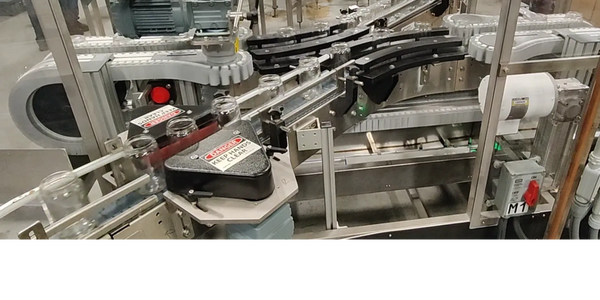

The Ionized Air Rinser is used for the cleaning of a various containers. Ionized air technology effectively removes dust, debris, and other particles, ensuring that your containers are clean and ready for use. It allows products to be cleaned in-line and is capable of running many product sizes with simple changeovers. The unit is protected from debris with the use of stainless-steel side panels.
The Ionized Air Rinser is designed for packaging lines that handle glass, plastic, metal, fiber and many other containers. This container cleaning solution utilizes the HP Invertor/Revertor System to rotate containers over an Ionized Air/Vacuum Assembly.
Clean dry compressed air is supplied to the ionized air nozzles, which produces turbulent airflow that pulls the debris towards the vacuum. Ionizer nozzles distribute a positive charge inside and outside of the container, detaching the debris from the container. The vacuum collects debris into the filter canister for manual filter bag disposal at the end of the day, week or month depending on usage and accumulation of debris. Your choice of air (non-ionized), water, or rinsing solution is available upon request. All Ionized-Air Riners are engineered and manufactured in our facility in Pennsylvania.
SPECS:
L x W x H – 72" x 36" x 48" (approx.)
Speeds – vary to match conveyor/production line speeds
Motors – AC Gearmotors
Electrical – NEMA 4, voltage may vary
Frame – stainless steel, with protective covering
Add-ons – HP Invertor/Revertor Assembly changeover, washdown units
Maintenance Parts- filter bags, belt pulleys
The FG Container Rinser and cap sterilizer swiftly grips, flips and cleans bottles, jars, caps, cans and other containers. The FG Rinser works with production lines that need cleaning done parallel to the conveyor.
In this container cleaning solutions, containers are counted by photo eye and controlled by belt drives to ensure the proper number of containers are being rinsed. Two pressurized arms lock the product into place, before lifting it into an inverted position to be blasted with ionized air. Finally, the pressurized arms place the products back on the production line for introduction to the next process.
The FG Rinser is fully customizable to any container specifications. Many FG Rinsers can be customized to run multiple different size containers. All FG Rinsers are engineered and manufactured on site.
SPECS:
L x W X H- 130" x 45" x conveyor height + 36"
Speeds- dependent on container/conveyor
Motors- AC Gearmotors/Servo
Electrical- NEMA 4, voltage may vary
Frame - stainless steel/ modular aluminum
Add-Ons - changeover for different size/shape containers running on the same line, washdown units
Maintenance Parts- filter bags, belt pulleys
Elevate your packaging operations with the cutting-edge MLC (Multilane Linear Changeover) Rinser from Carleton Helical Technologies. Designed for precision and customization, this rinser boasts innovative quick changeover capabilities that cater to lines handling multiple container sizes, prioritizing time-saving solutions for busy production environments.
The standout feature of this rinser is its integrated changeover system, seamlessly built onto the stainless-steel frame. This system not only ensures line safety by simplifying the changeover process, but also maximizes space utilization by eliminating the need for additional storage. With the Invertor System conveniently staying on the rinsing system, production line technicians can effortlessly switch between containers, saving valuable time and streamlining operations.
Experience unmatched efficiency and convenience as technicians can swiftly slide one Invertor System to the side and position the next one, without the hassle of relocating changeover parts. This seamless transition directly on the rinser enhances workflow productivity and minimizes downtime, aligning perfectly with Carleton Helical Technologies' commitment to delivering tailored solutions for the packaging industry.
SPECS:
L x W x H – dependent on container
Speeds – vary to match conveyor/production line speeds
Motors – AC Gearmotors
Electrical – NEMA 4, voltage may vary
Frame – stainless steel, with protective covering
Maintenance Parts- filter bags, belt pulleys
The Gripper Rinser container cleaning system is a popular option for production lines that run multiple size containers. This system is especially ideal for containers made of PET that have a tendency to stick together. With the Gripper Rinser, you can be assured that your containers will be thoroughly cleaned with ionized air and ready for filling. It is a reliable and efficient solution that is engineered and manufactured at our facility, and we are confident that it will be a valuable asset to your production line.
SPECS:
L x W X H- 120" x 54" x 72"
Speeds- 100-500 CPM
Motors- 730/460 AC Invertor Duty
Electrical- NEMA4 / NEMA4x
Frame - stainless steel/ modular aluminum
Container Size Range - 2-6" Diameter / 4-8" Tall
This video features the Ionized Air Rinser cleaning dairy containers before they are filled.

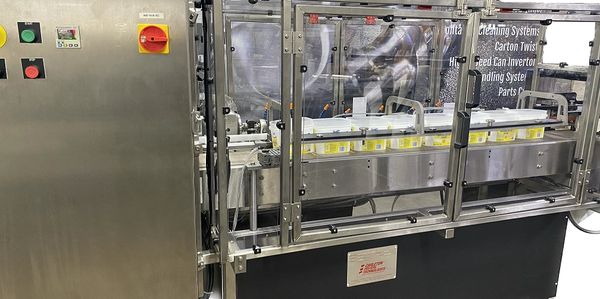

This FG Container Cleaner features rectangular tubs that are rinsed with ionized air before being filled.
